Gigabit Industrial Switch 8 Port + 4 SFP + 1 Console Port L2 Managed hasivo รุ่น G1200W-8G-4S (With Power Adapter DC 12V2A) เหมาะสำหรับการใช้งานในเครือข่ายอุตสาหกรรมที่ต้องการความเร็วและความปลอดภัยในระดับสูง
ราคา 4,250 บาท
รุ่น : G1200W-8G-4S (รหัสสินค้า : P04773)​

PRODUCT : Gigabit Industrial Switch 8 Port + 4 SFP + 1 Console Port L2 Managed
MODEL : G1200W-8G-4S
Fixed Port : 8 * 10/100/1000 Base-TX RJ45 port (Data)
                    4 * 1000M SFP
Console Port : 1
Netework Layer : Layer 2
Network protocol : IEEE802.3x
                                 IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
                                 IEEE802.3ad
                                 IEEE802.3q、IEEE802.3q/p
                                 IEEE802.1w、IEEE802.1d、IEEE802.1S
                                 IEEE802.3z 1000BASE-X
                                 STP (Spanning Tree Protocol)
                                 RSTP/MSTP(Rapid Spanning Tree Protocol)
                                 EPPS ring network protocol
                                 EAPS ring network protocol
Port Specification : 1-8 port 10/100/1000 BaseT（X）autodetection，AUTO-MDI/MDI-X
Transmission Mode : Store and Forward (full wire speed)
Bandwidth : 128 Gbps
Packet Forwarding : 40.32 Mpps
MAC : 8K
Buffer : 4.1M
Transmission Distance : 10BASE-T： Cat 3,4,5 UTP(≤250meter)
                        100BASE-TX： Cat5 orlater UTP(≤100meter)
                        1000BASE-TX： Cat6 orlater UTP(≤1000meter)
                        1000BASE-SX: 62.5μm/50μm MMF(2m~550m)
                        1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

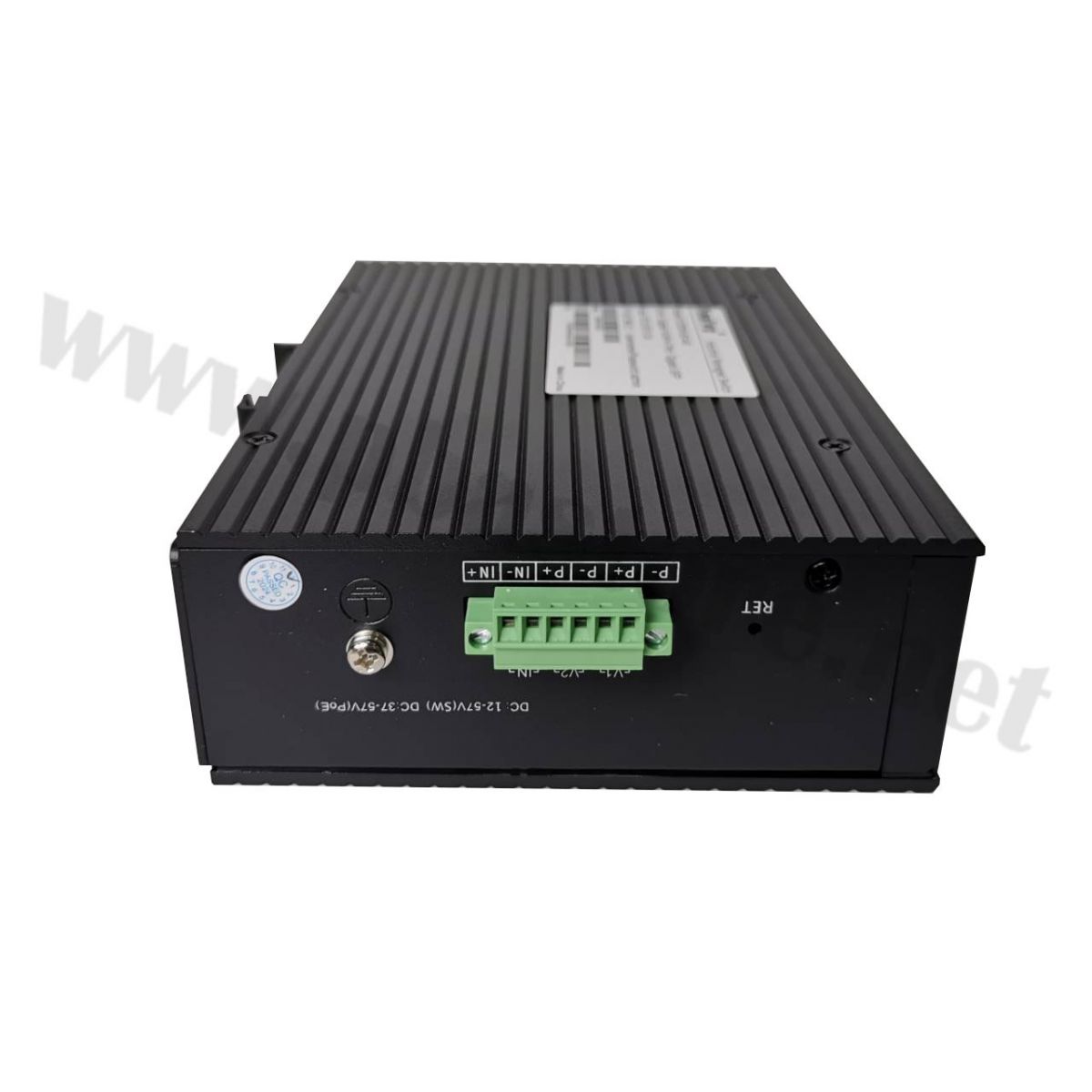

Power Input : 2 Group of independent Power Input SW: DC12-57V
Watt : Standby power consumption ≤15W;
           Full-load power consumption ≤25W；
LED Indicator : 910: (SFPLED)
                           Port 1-8 (Green=100M；Green+Orange=1000M）
                PWR: (Power/system LED)
                V1: (Masterpower LED)
                V2: (Slavepower LED)
                HW: (Ringnetwork ON LED)
Operating Temperature / Humidity : -40～+80°C；10%～90% RH No coagulation
Storage Temperature / Humidity : 40～+85°C；5%～95% RH No coagulation
Lightning ProtectionLevel : 6KV 8/20us；8KV ESD
                            IP40

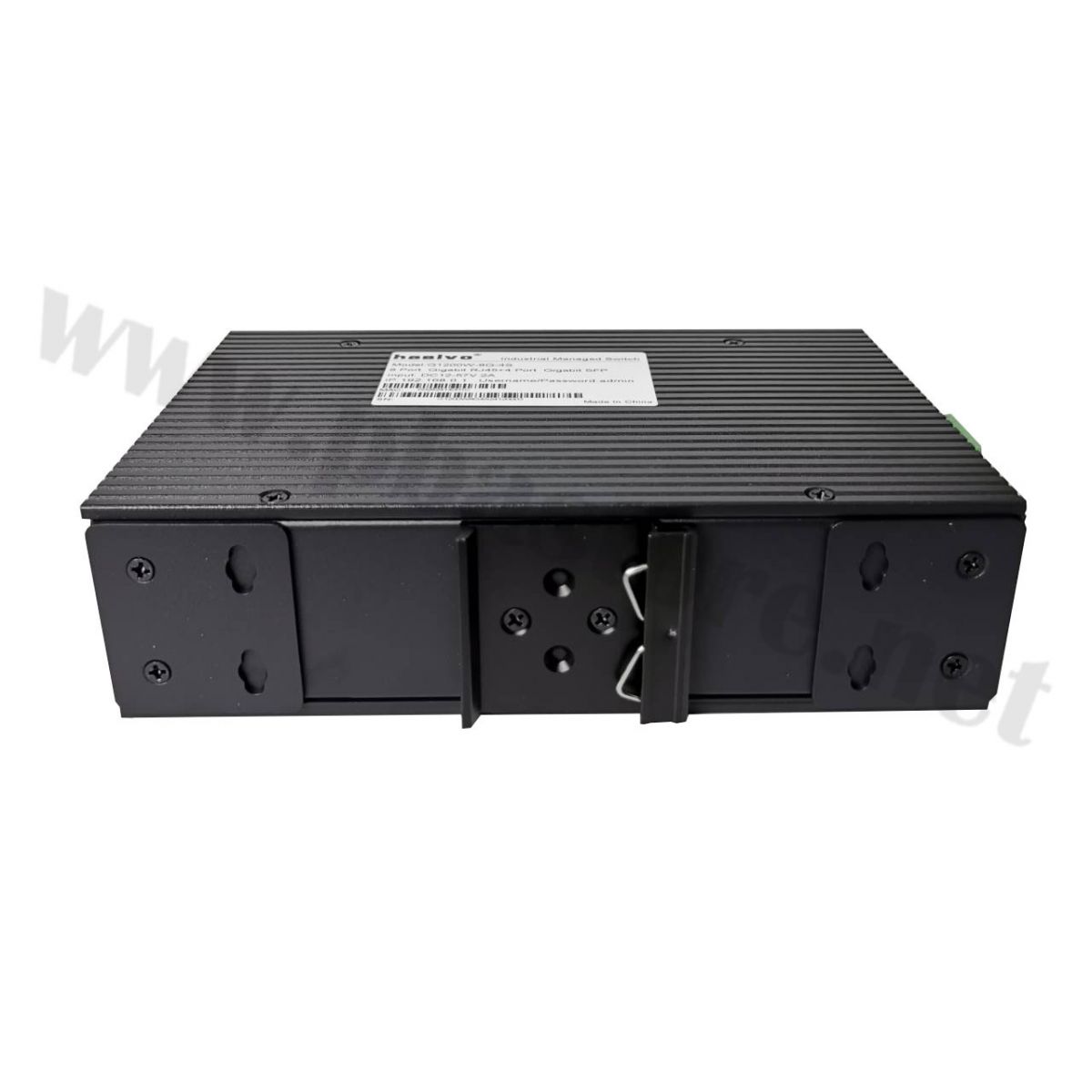

Installation : DIN guide rail type (additional wall hangers)
Certificate 3C；CEmark,commercial；CE/LVDEN60950；FCCPart15ClassB；RoHS
