อุปกรณ์เครื่องTESTER กล้องรองรับ5ระบบ,IP CAMERA,CCTV AHD TVI CVI Analog ทุกชนิดและกล้อง Analog เดินสายRG6, ราคาถูก,จอ3.5นิ้ว,PTZ Support RS485,รองรับกล้อง8ล้านพิกเซล

HD Camera Tester 3.5นิ้ว รองรับ5in1 8Mpx 4K.2651P รุ่นIPC-1600ADH Plus /PTZ RS485 (ยกเลิกการผลิต)
8MPAHD+8MPTVI+8MPCVI+4KH.2651P+CVBS

ราคา 3,850 บาท/ชุด
รุ่น : TST0005 (รหัสสินค้า : P01857)​

•3.5 inch IPS touch screen,480*320 resolution
•H.265/H.264, 4K video display via mainstream
•CVBS and PTZ control
•HD coaxial video signal quality
•Rapid ONVIF, auto view video and create testing report
•8MP TVI, 8MP CVI, 8MP AHD camera test
•Dual window test, IP &Analog camera test
•DC12V 1A,
•PPPOE dial test

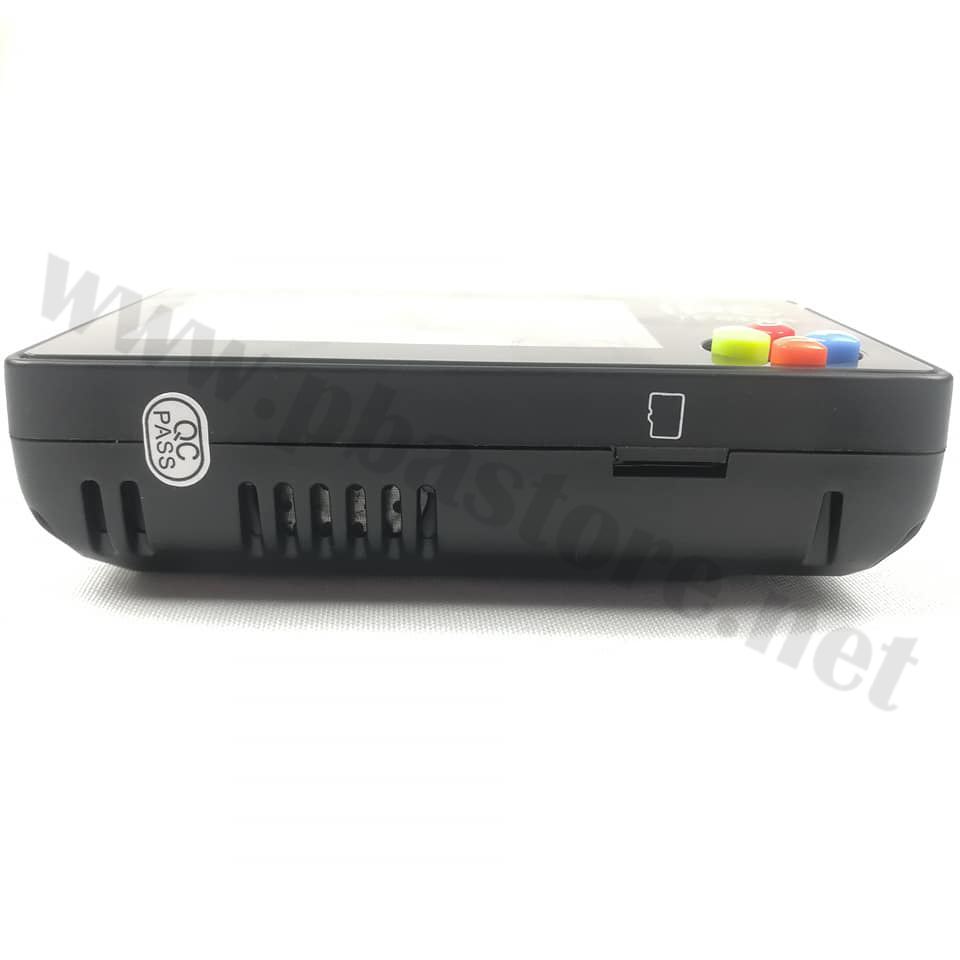

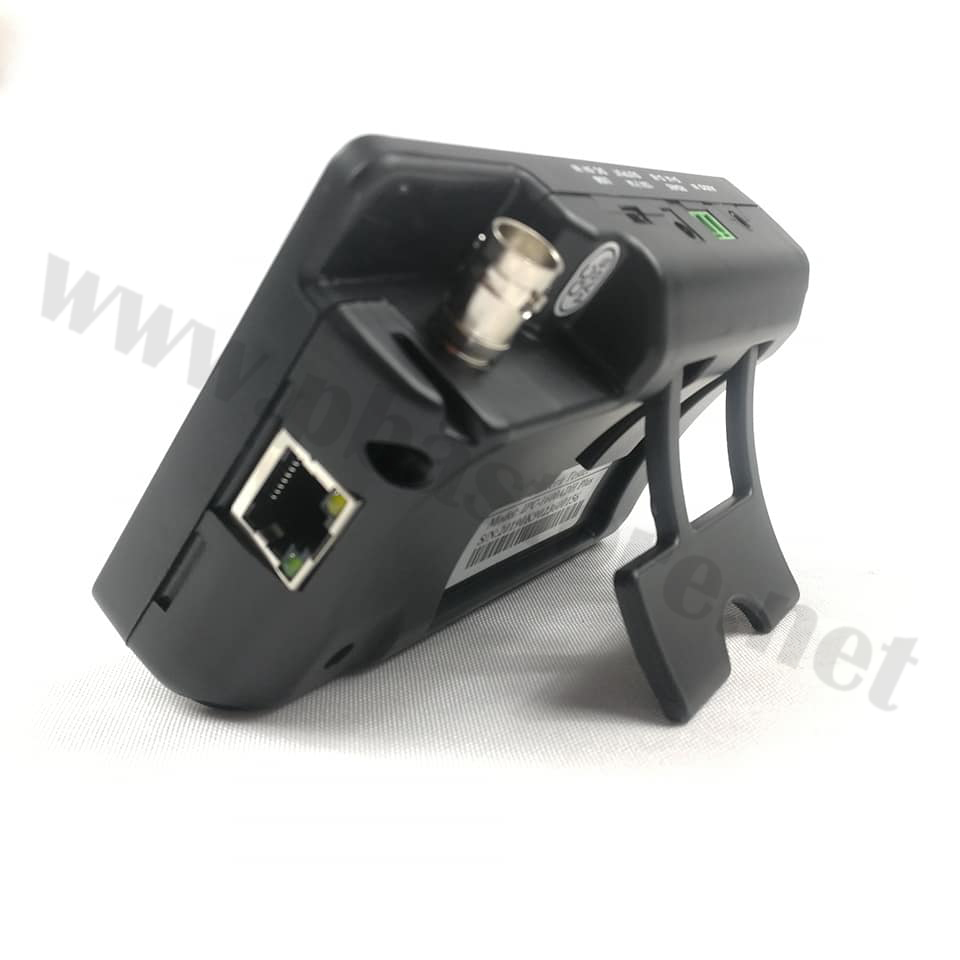

The 3.5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog. HD coaxial cameras as well as other security equipment. The 480*320 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
Application
•CCTV system installation and maintenance
•Network cabling project installation and maintenance
•Dome camera, IP TVI CVI AHD 4K H.265 camera testing
•Video transmission channel testing
•PTZ controller
Features
1) 3.5 inch IPS touch screen, 480 •320resolution
2) New-H.264 and H.265.4K video display via mainstream
3) 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control 4xzoom, video record and playback.coaxial PTZ control and call camera OSD menu
4) 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control 4xzoom ,video record and playback,coaxial PTZ control and call camera OSD menu
5) 8MP AHD test, 3840 x 2160P 15 FPS, UTC control 4xzoom ,video record and playback,coaxial PTZ control and call camera OSD menu
6) PPPOE Dial test, can connect internet to PPPOE dial test
7) HD coaxial video signal quality test
8) IP & CVBS camera test, PTZ controller
9) New-IP discovery, just by one key to detect all network cameras IP address
10) Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing rep
11) New-IP and analog testing at the same time.converter test from analog to digital with dual test window IP & CVBS
12) Hik test tool pressing just one key to activate hikvision camera, Image test, can modify the user name, password and IP paramet
13) Dahun test tool, test Dahua camera modify the user name, password and IP parameters
14) Now. Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speede network parameters
15) New-Drop-down menu, can select PoE power IP setting, CVBS, LAN info ete in any interface
16) New Customers self update software you can install apps with android version such as Skype, wechat etc
17) ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)
18) New- Quick office, quick office app (support excel word .ppt format) doc. Editable
19) PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
20) PING test IP address scan, port flashing etc
21) Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools

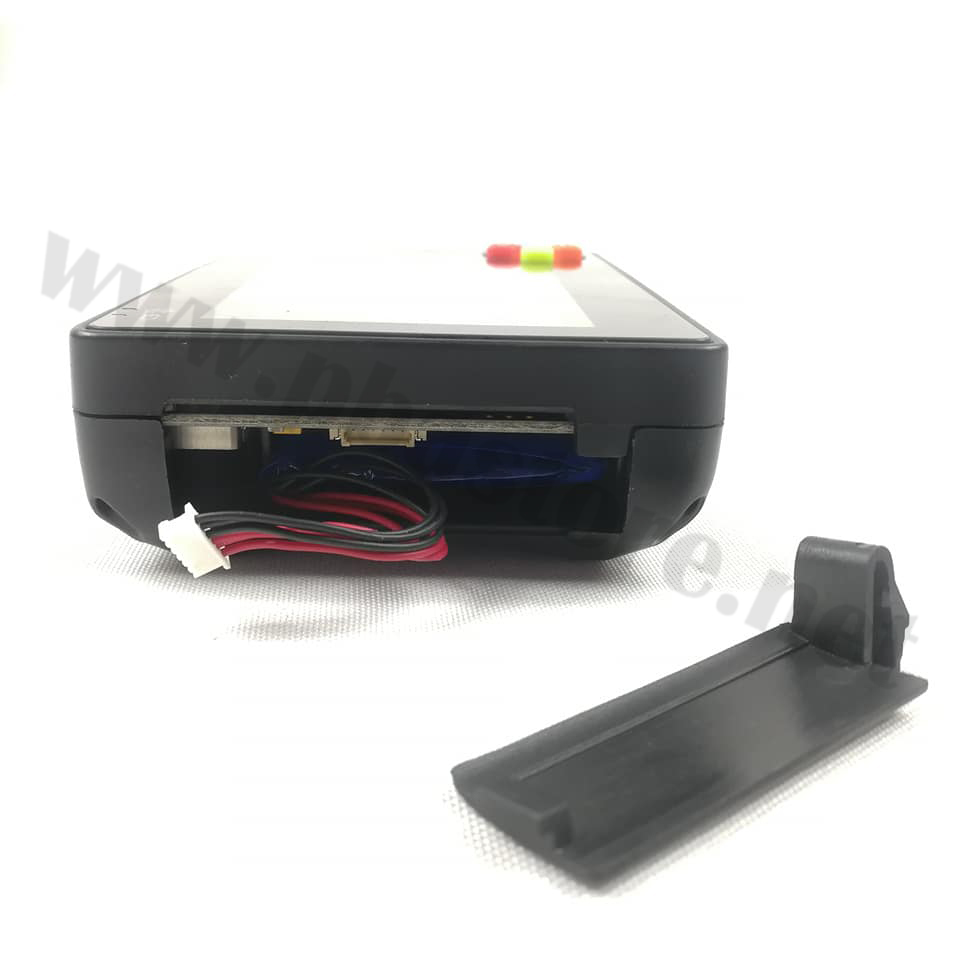

22) 7.4V 12400mAh Lithium Ion Polymer Battery, after 4-5 hours charging, working time lasts 7 hours
