Swicth HDMI 3ออก1 Switcher พร้อมRemote(รีโมทควบคุมสลับช่อง) Full 1080P กล่องสีดำอย่างดี ราคา 290.00 .-
Swicth HDMI 3ออก1 Switcher พร้อมRemote(รีโมทควบคุมสลับช่อง) Full 1080P กล่องสีดำอย่างดี
พร้อมรีโมทสั่งการระยะไกล แถมสวิตช์ในตัว Selected มีไฟสถานะบอกตำแหน่งของช่อง
Introduction
The 3-Port HDMI switch allows 3 HDMI ports to be switched to a single display terminal via remote control or buttons on unit. The switcher can be also placed at the end of a long HDMIl cable to regenerate the HDMIl signal. This HDMI Switch supports video formats including 720p, 1080i , 1080p
Connection and operation

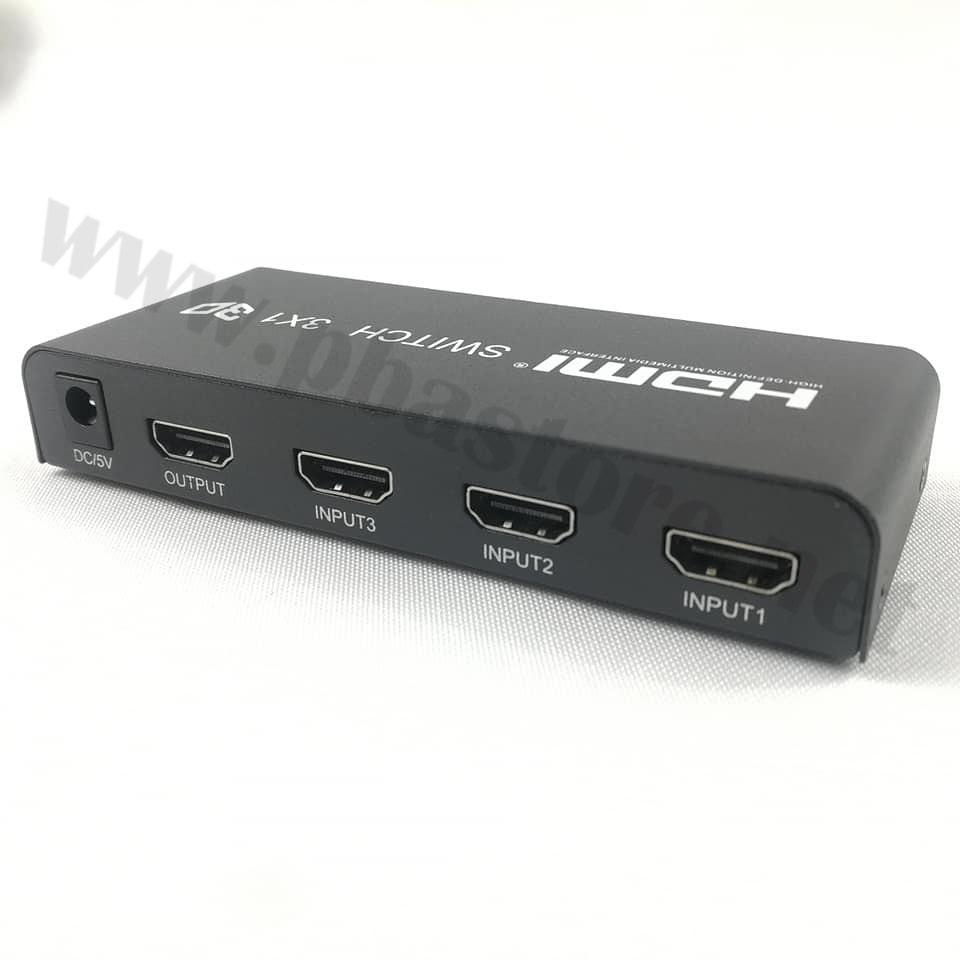

1.Connect 3 HDMI signal sources into HDMI switch input with 3 HDMI cables.
2.Connect 1 HDMI display source into HDMI switch output with 1 HDMI cable.
3.Connect 5V/1A power adapter to the HDMI switch.
ราคา 290 บาท / ชุด
รุ่น : HD-S310B (รหัสสินค้า : P00933)
*แถมAdapter
Features
* Support 2.25Gbps data rate for tmds clock up to 225MHZ.
* Support HDMI1.4a. * Support 3D.
* Supports highest video resolution 1080p/60HZ.
* Support UXGA,WUXGA.
* Support 8/10/12 bit deep color.
* Support AWG26 HDMI standard cable, Input up to 10 metres ,output up to 10 metres.
* Supports single high definition display for multiple sources, such as DVD Players and Satellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes.
* Remote Control for operational flexibility and easy to control.
* DC5V/1A power supp.
Specifications
HDMI version...HDMI 1.4A
HDMI resolution...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format...8/10/12 bit deep color
Support audio format...DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth,,,225MHZ
Max baud rate...2.25Gbps
Input cable distance...<10m AWG26 HDMI standard cable
Output cable distance...<10m AWG26 HDMI standard cable
Max working current...500mA
Power adapter format Input...AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range...(-15C to +55 C)
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (L x W x H)...128x53x20 (mm)
Weight...140g ront ack

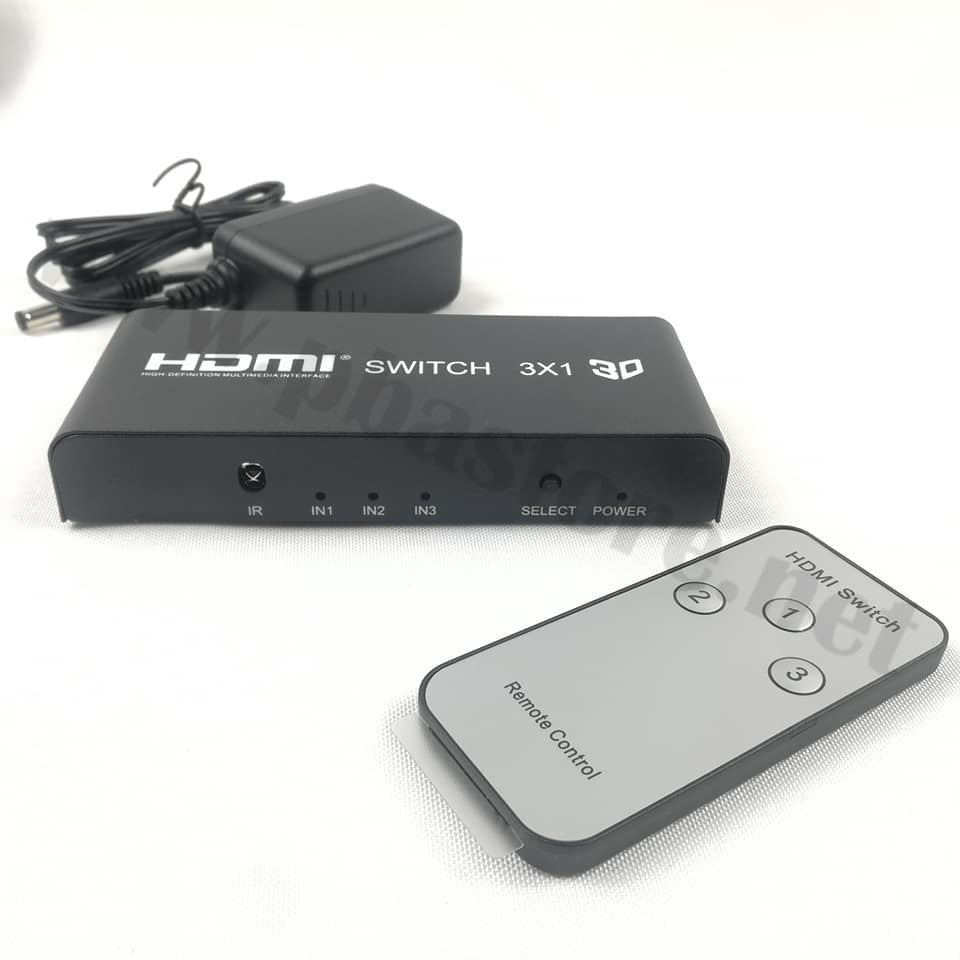

The package includes
1. HDMI Switch 1PCS

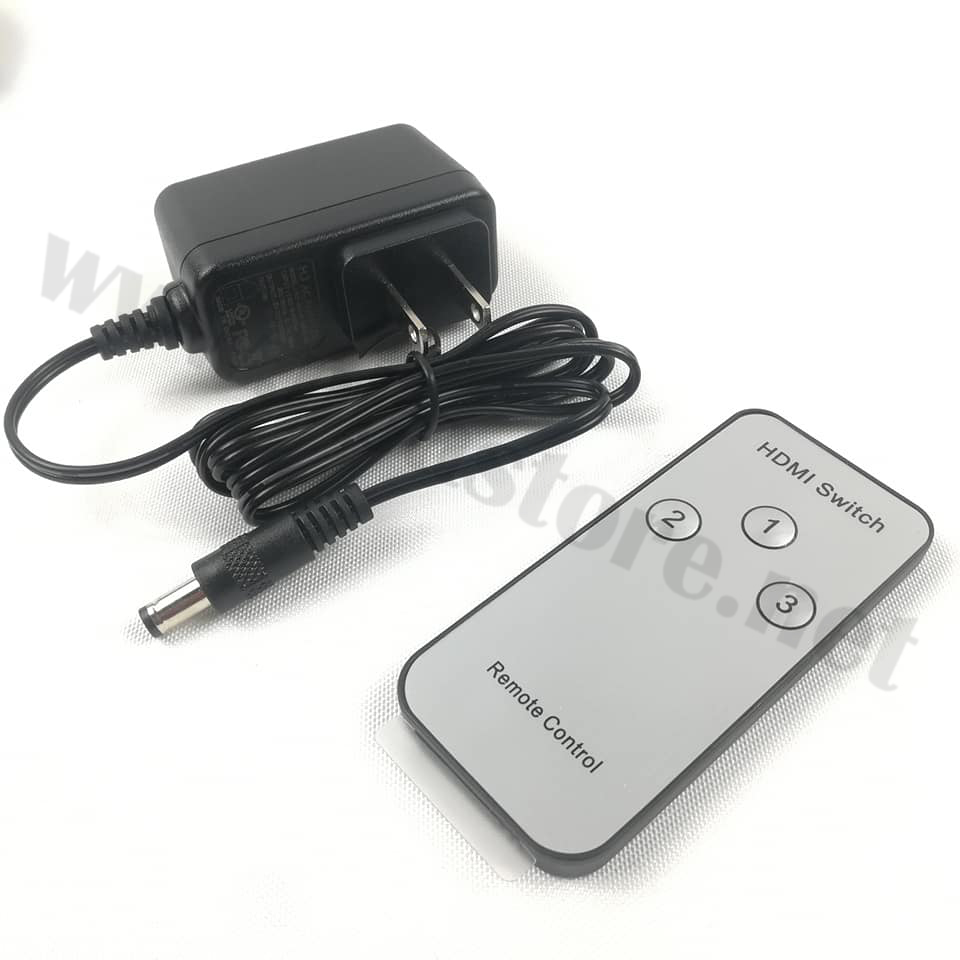

2. IR Remote Control 1PCS
3.5V1A DC Power adapter 1PCS
4. User Manual 1PCS
