*Applicable to 10M/100/Gigabit POE switches, camera, POE injector

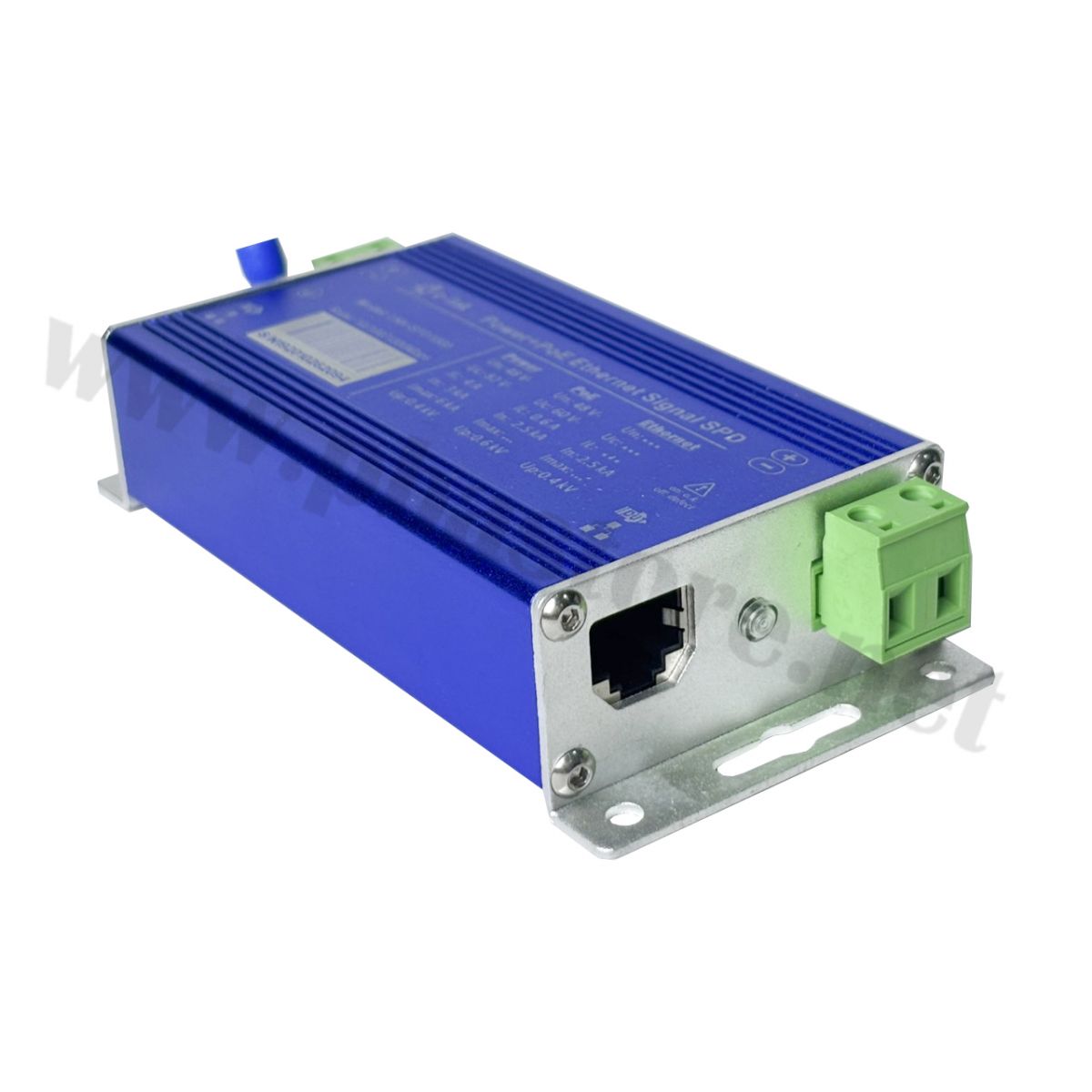

POE Ethernet Signal SPD
Date: Ethernet 1000Mz
POE Power: AC/DC48V
Isn=5KA, Imax=10KA

RJ45 interface
Data protection: 1.2.3.6.4.5.7.8
DC 48V power protection： (1/2 48V+) (4/5 48V+) (3/6 48V-) (7/8 48V-)

Applicable scope
POE Ethernet lines for the data lines and power supply to carry out complex lightning surge protection devices. Make sure your systems and equipment from electrostatic discharge due to lightning or surges caused damage.

Main features
1.Flow capacity, fast response
2.Multi-level protection circuit, residual depression
3.Use the core components of international brand products, excellent performance
4.Take place through the special treatment to avoid signal interference single network SPD
5.Small size, easy installation

Nominal voltage U n : (Data signals) 5V
Maximum continuous operating voltage U c : 7.8V
Nominal discharge current (8/20μs) I n : 5KA
Maximum Flow Capacity (8/20μs) I max : 10KA
Limit voltage U r : ≤15V
Transmission rate Vs : 1000Mbps
Response time Ta : ≤1ns
Insertion loss AE : ≤0.5dB
Pin Protection : 1/2/3/6 4/5/7/8
Connector Type : RJ45
