16CH ราคา 14,600 บาท / คู่
รุ่น : STHA-HD1080P16V1D-S (รหัสสินค้า : P01132)​

เชื่อมต่อสัญญาณด้วยหัว FC ขาออก BNC
อุณหภูมิในการทำงาน: -40 ℃ ~ + 85 ℃
อุณหภูมิการจัดเก็บ: -40 ℃ ~ + 85 ℃
ความชื้นปฏิบัติการ: 0 ~ 95% ไม่กลั่นตัว
แถม Adapter 12v 1A

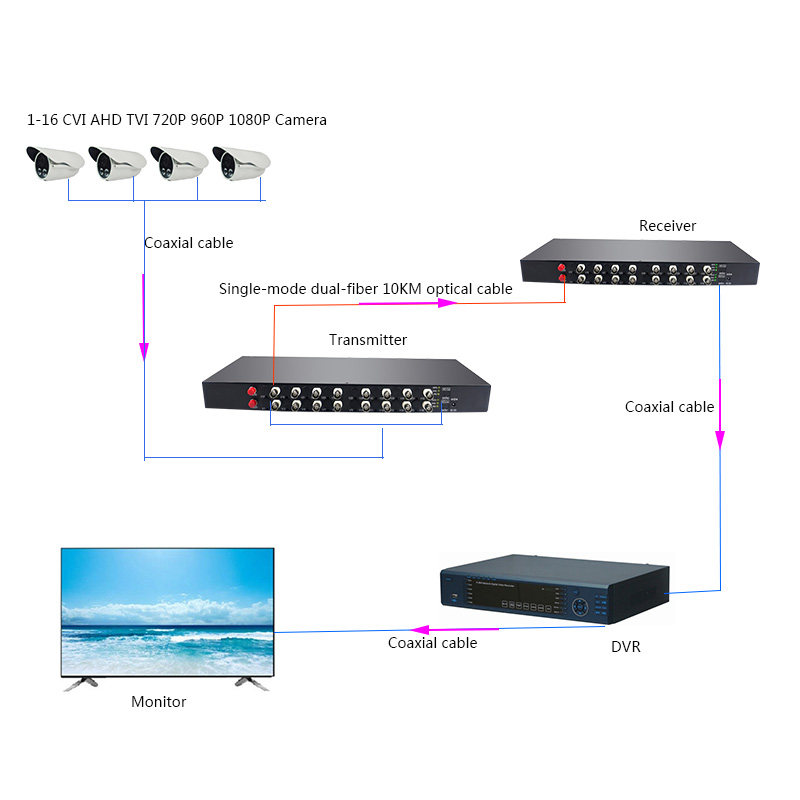

HDCVI/AHD coaxial HD optical transceiver can convert the HD videos scanned line by line into optical signals by the use of analog modulation technology in accordance with the coaxial cable-based
HD video transmission specifications.Due to the adoption of PFM modulation technology, its
transmission range can exceed 10Km. As an upgraded product in the analogue monitoring technology architecture, it is still a closed-type analogue monitoring system. Two-way transmission of image and
data signals can be realized in an optical fiber based on the use of wavelength division multiplexing technology, to meet the actual demand of monitoring project. It is widely used in such HD monitoring system
SAS remote expressway and railway monitoring system, bank and school.
Product Features
*Signal-to-noise ratio (SNR) remains unchanged within transmission range
*Automatic power adjustment and automatic temperature compensating circuit
*Surface-mount technology
*Power and working state indication
*Plug-in and freestanding structure
*Automatic recovery of overload protection
*FC optical connector
*In conformity with NEMA specifications
*Hot swap replacement
*Ultra-optical dynamic range, and adjustment is needless in use
Video Indicators
*Video Number: 16
*Video Input/Output Impedance: 75Ω (Non-equilibrium)
*Video Bandwidth 45MHz
*Video Format: 1080P / 25/30/50/60
*Video Voltage: 500MVP-P
*Input Reflection Loss on Transmitting Terminal: >15dB
*Maximum Jitter on Receiving Terminal: <0.2UI
*Rise/Fall Time on Video Receiving Terminal: <0.8ns
*Video Interface BNC
Optical Indicators
*Optical Interface: FC
*Wavelength: Mono-mode 1310 (9/125μm)+1550
*Single mode double fiber
General Indicators
*Mean Time Between Failures (MTBF) is more than 100 thousand hours
*Operating Temperature: Minus 20 degrees Celsius to 60 degrees Celsius above zero
*Operating Humidity: 0-95% Non-condensing
*Power Supply (DC): 12V2A
*Product Size: 48(cm)*17.5(cm)*4.5(cm)
*Package Size: 54(cm)*27(cm)*18(cm)
*Weight:5(KG)
Packing list
1 Pair (Transmitter & Receiver)
2 x Power supply
1 x User manual
