อุปกรณ์รับรองอุตสาหกรรม GIGABIT INDUSTRIAL FIBER POE SWITCH 2 PORT (WDM) ทนทุกสภาพอากาศ (Outdoor) ราคาถูก ราคา 1,290.00 .-

สวิตช์ POE ติดตั้งในโรงงานอุตสาหกรรม,Gigabit Fiber Poe Switch Industrial,2ช่อง ch port,ทนความร้อนสูง,outdoorภายนอก,ไฟเบอร์แฟติกรองรับ20กิโล,10/100/1000


GIGABIT INDUSTRIAL FIBER POE SWITCH 2 PORT (WDM)

Gigabit Fiber Poe Switch Industrial 2 Port สำหรับติดตั้งในโรงงานอุตสาหกรรมโดยเฉพาะ ทำงานได้ที่อุณหภูมิตั้งแต่ -30 องศา ถึง 70 องศาเซลเซียส ออกแบบมาพิเศษเพื่อให้ทำงานได้ดีในสภาพแวดล้อมในระบบอุตสาหกรรม

ราคา 1,290 บาท/ชุด
รุ่น : MSP00004 (รหัสสินค้า : P00150)​

ความเร็วในการรับส่งข้อมูลที่ 10/100/1000 Mbps. ใช้งาน Uplink Port โดยใช้สาย Fiber Optic Single Mode (SC/WDM) ในระยะ 20 กิโลเมตร

คุณสมบัติ
แรงดันช่วงไฟฟ้าขาเข้า : 48-57V (DC)
แรงดันไฟขาออก : 48VDC
กำลังไฟฟ้าขาออก : 15.4W
จำนวนพอร์ทแลนทั้งหมด : 2 Port
จำนวนพอร์ทที่จ่ายไฟ : 2 พอร์ท (10/100/1000 Mbps.)
พอร์ทสำหรับลิ้งข้อมูล : 1 Fiber / SC (1.25G)
ระยะจ่ายไฟ (สายแลน cat 5e, cat 6) : 100-160 เมตร
มาตรฐานการจ่ายไฟ : IEEE 802.3af
คู่สายที่ใช้จ่ายไฟ : (1,2 ไฟบวก) (3,6 ไฟลบ)
อุณภูมิในการทำงาน : -30 องศา ถึง 70 องศา

อุปกรณ์ประกอบด้วย
1. Gigabit Fiber Poe Industrial 2 Port (A) จำนวน 1 ตัว

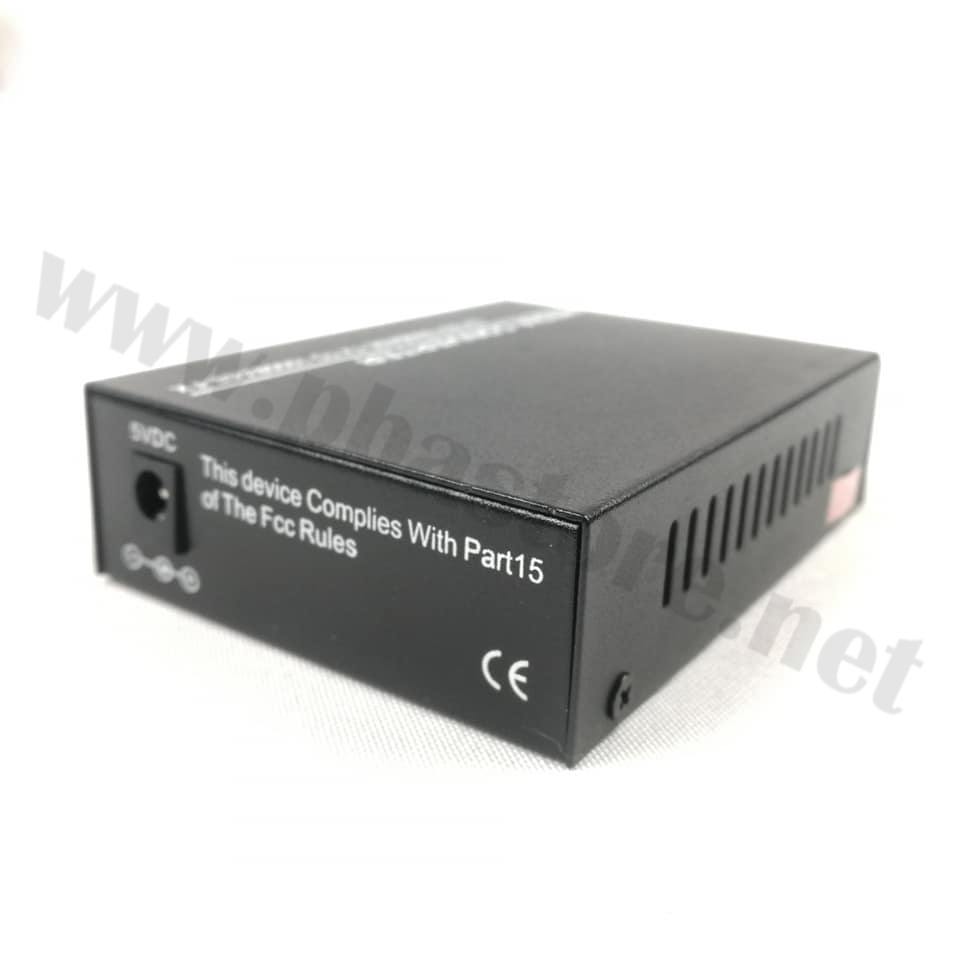

2. Gigabit Media Converter 1 Port (B) จำนวน 1 ตัว

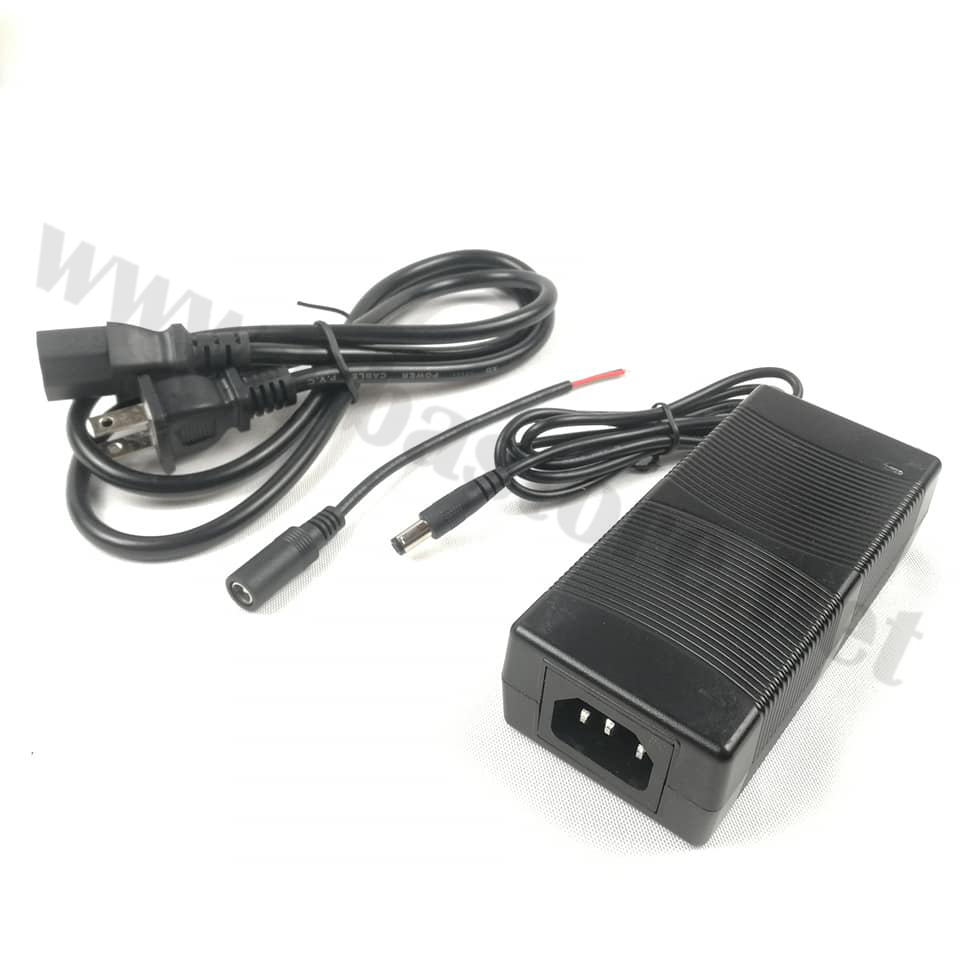

3. อแด้ปเตอร์ 52V/1.25A จำนวน 1 ตัว
4. อะแด้ปเตอร์ 5V/2A จำนวน 1 ตัว


อุปกรณ์ที่ใช้ร่วมกัน :

ติดตามโปรโมชั่นทั้งหมด WWW.PBASUPPLY.NET

#ติดต่อซื้อสินค้าที่นี้
 080-635-2686 (sale ตี๋)      @pbasupply    pichit.pbasupply@gmail.com
 090-987-3656 (saleธิป)
​ salepba           thanathip.pbasupply@gmail.com
 096-930-5237(sale ต๊อป)
​ pbasupply2      sarawut.pbasupply@gmail.com
