จำหน่ายVideo Converter แปลงสำหรับกล้องวงจรปิดเป็นไฟเบอร์ 8ช่อง(ch) รองรับ 2ล้านพิกเซล(MP) 4ระบบ ใช้สายไฟเบอร์ 1Core หัว FC รองรับระบบ AHD/HD-CVI/HDTVI/Analog รับส่งสัญญาณ เดินสายไฟเบอร์ได้ไกล > 10Km ราคาถูก ราคา 6,700.00 .-
Video Digital Optical Converter (สำหรับกล้องวงจรปิด)
8ช่อง(ch) รองรับ 2ล้านพิกเซล(MP) 4ระบบ ใช้สายไฟเบอร์ 1Core หัว FC
รองรับระบบ AHD/HD-CVI/HDTVI/Analog
รับส่งสัญญาณ เดินสายไฟเบอร์ได้ไกล > 10Km
8CH ราคา 6,700 บาท / คู่
รุ่น : STHA-HD1080P8V1D-Mini (รหัสสินค้า : P01130)
เชื่อมต่อสัญญาณด้วยหัว FC ขาออก BNC
อุณหภูมิในการทำงาน: -40 ℃ ~ + 85 ℃
อุณหภูมิการจัดเก็บ: -40 ℃ ~ + 85 ℃
ความชื้นปฏิบัติการ: 0 ~ 95% ไม่กลั่นตัว
แถม Adapter 12v 1A

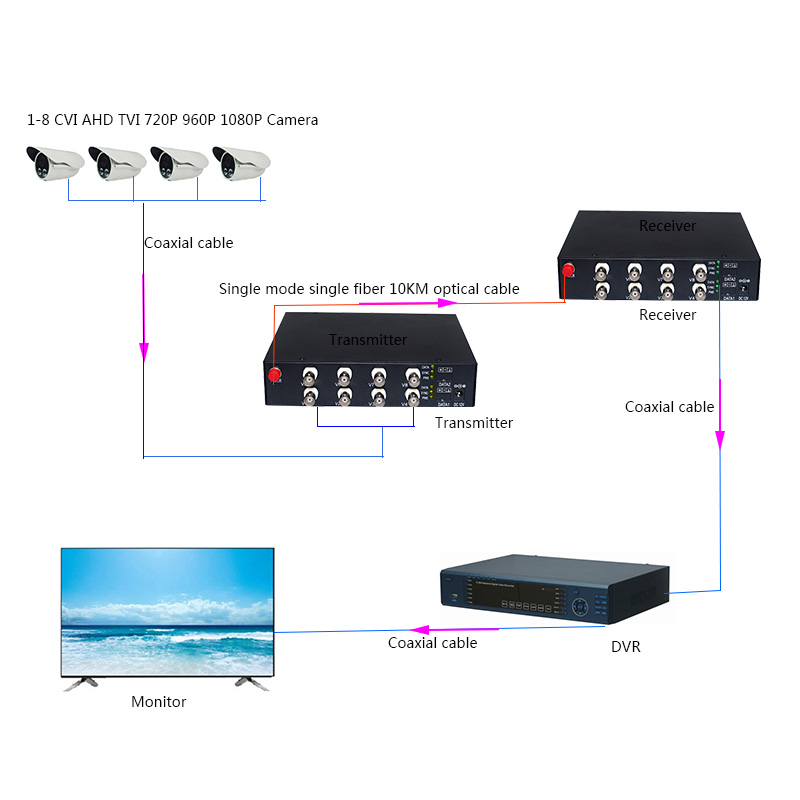

HDCVI/AHD/TVI coaxial HD optical transceiver can convert the HD videos scanned line by line into optical signals by the use of analog modulation technology in accordance with the coaxial cable-based HD video transmission specifications. Due to the adoption of PFM modulation technology, its transmission range can exceed 10Km. As an upgraded product in the analogue monitoring technology architecture, it is still a closed-type analogue monitoring system. Two-way transmission of image and data signals can be realized in an optical fiber based on the use of wavelength division multiplexing technology, to meet the actual demand of monitoring project. It is widely used in such HD monitoring systems as remote expressway and railway monitoring system, bank and school.
Product Features
*Signal-to-noise ratio (SNR) remains unchanged within transmission range
*Automatic power adjustment and automatic temperature compensating circuit
*Surface-mount technology
*Power and working state indication
*Plug-in and freestanding structure
*Automatic recovery of overload protection
*FC optical connector
*In conformity with NEMA specifications
*Hot swap replacement
*Ultra-optical dynamic range, and adjustment is needless in use
Video Indicators
*Video Number: 8
*Video Input/Output Impedance: 75Ω (Non-equilibrium)
*Video Bandwidth 45MHz
*Video Format: 1080P / 25/30/50/60
*Video Voltage: 500MVP-P
*Input Reflection Loss on Transmitting Terminal: >15dB
*Maximum Jitter on Receiving Terminal: <0.2UI
*Rise/Fall Time on Video Receiving Terminal: <0.8ns
*Video Interface BNC
Data Indicators
*Transmission Rate: 0-115.2kbps, Forward, Inverse, Half-duplex, and Full-duplex
*Data Type: RS485
*Bit Error Rate: less than 10 to the minus 9th
*Data Interface: Block Terminal
Optical Indicators
*Optical Interface: FC/UPC
*Wavelength: Mono-mode 1310 (9/125μm)+1550
*Transmission Range: Ordinary Type of Mono-mode Fiber: 0-10KM
General Indicators
*Mean Time Between Failures (MTBF) is more than 100 thousand hours
*Operating Temperature: -40℃+70℃
*Operating Humidity: 0-95% Non-condensing
*Power Supply (DC): 12V1A
*Product Size: 18.8(cm)*17.5(cm)*4.4(cm)
*Package Size: 20(cm)*20(cm)*6(cm)
*Weight:1.5(KG)
